SEV200AH HV DC Contactor

The utility model has the advantages that the utility model is provided with one normally open contact, which is suitable for charging piles, electric four wheeled vehicles, new energy vehicles, energy saving and environmental protection systems, road tr

Product introduction

FEATURES:

Suitable for new energy electric vehicles, charging facilities, photovoltaic, wind power generation systems, automotive air conditioning, communication power, UPS, power and other electrical control circuit of the switch control, with smal

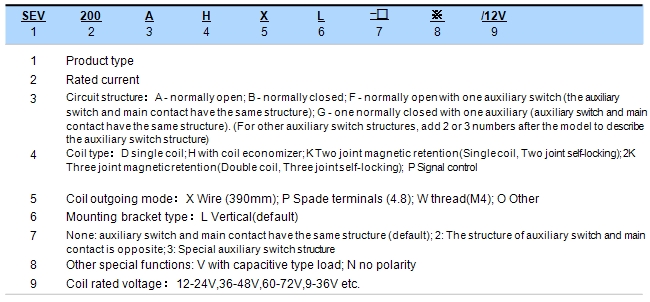

SAYOON MODEL IMPLICATION:



USES:

The utility model has the advantages that the utility model is provided with one normally open contact, which is suitable for charging piles, electric four wheeled vehicles, new energy vehicles, energy saving and environmental protection systems, road tr



TECHNICAL PARAMETERS:  (Version 2.82)

 SAYOON Product Type

 SEV200AH

 Contact form 1 NO(SPST-NO) or 1NC(SPST-NC)
 Coil Rated voltage(DC V) 12-24V,36-48V,60-72V,9-36V etc.
 Contact voltage(DC V) 5-1000V
 Contact circuit rated load current (DC-1) 200A
 Typical voltage drop across contacts per 100A ≯80mV
 the cooling pull-in voltage at (20±5)℃ (V) ≯70%
 the cooling drop-out voltage at (20±5)℃(V) ≯35%,≮5%
 Working voltage range of 40 degrees celsius coil 0.8-1.2Us
 Drop-out time(n/o contacts to open) 80ms
 Pull-in time (n/o contacts to close) 20ms
 connect the maximum contact bounce time 10ms
 Disconnect the maximum contact bounce time 7ms
 Insulation Resistance 100MΩ
 Electric strength to resist 50Hz/60Hz 2200VAC 1minute
 Typical fault currents which can be ruptured 1000A/5ms at 48V DC
 Coil power (W) H: Start30-50,Keep1.5-5
 Temperature rise of coil (K) ≤45
 Temperature rise on outgoing terminal (K) ≤65
 Electric life 20000 times
 Mechanical life 300 thousand times
 Work specification Continuous
 Contact material Alloy
 Inrush time(Max) 130ms
 Maximum switching current 2000A 320VDC(More than 1 times)
 Maximum switching power 640kW
 Load terminal type M8 Rose
 Coil terminal type 0.3 square silicone wire, 390mm long
 Auxiliary contact rated load (choose) 3A/30VDC
 Testing organization certification CCC,CE,FCC,RoHS
Note:As regarding to the different using environments of customers which requires different focus of the functions,and in order to improve the comprehensive properties of our products,sayoon may adjust the coil parameters,temperature rise and so on. The



LOAD CHARACTERISTIC CURVE:





INSTALLATION DIAGRAM:



WIRING DIAGRAM:

COIL TEMPERATURE CURVE:



MECHANICAL ABILITY and USE of the ENVIRONMENT:

 Contact lead M8 tightening torque(N.m) ≯9.0 appropriate
 Coil lead mode Wire dipping tin (Red positive and black negative)
 Ambient temperature -40~+85℃
 Relative humidity +20℃ 98%
 Vibration freq. atthe fixed position 3G, 1~50Hz amplitude 0.5mm
 concussion (60~100) time/minute、Acceleration≤4g
 Altitude 2000m
 Installation direction Random
 International Protection IP68





ORDER INSTRUCTION:

 SAYOON Product Type

 SEV200AH

 U.N.W. 409g
 Mounting bracket type L Vertical(default)
When ordering, please state the following: name, full model, control coil voltage specification, installation frame type, whether with auxiliary contact, order quantity. For example: HV DC Contactor SEV200AH/24V 100pcs, indicating the load rated current 2



certification:









PRODUCT PICTURE:









DOWNLOAD DATA:

 No. Download
 1 SEV200AHdatasheet
 2 DC Contactor Technical Applications Form for PDFDC Contactor Technical Applications Form for XLS
 3 Mini PDF Reader1 for WinXPMini PDF Reader1 for Win7Adobe Reader



Tips: if you want to understand the technical details of parameters more SAYOON SEV200AH HV DC Contactor, other SAYOON or the product of information, please visit SAYOON electric official website www.sayoon.com/en, or send mail to sayoon@sayoon.com , ZHEJIANG SAYOON ELECTRIC CO., LTD.  will welcome your arrival.
