SA Rail Types Sold State Relay

It is small in size, high in life, good in reliability, high in sensitivity, low in power consumption, small in electromagnetic interference and overall in the way of guide rail installation. The wiring adopts plug-in mode, which is fast a

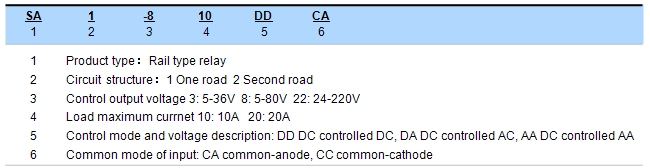

SAYOON MODEL IMPLICATION:



USES:

The product has one-way and two-way contact structure, which is usually used in automatic control system, mobile communication equipment, connecting PLC or single-chip computer for current amplification drive.



TECHNICAL PARAMETERS:  (Version 1.37)

三佑产品型号		SA
Type		SA1-810DD	SA1-2210DA
Control mode		DC Controlled DC	DC Controlled AC
Input	Input control voltage	3-32V	3-32V
	Input Control Current	< 10mA Built-in constant current circuit
	Input on-off voltage	0N>2.6V OFF<2V	0N>2.6V OFF<2V
Output	Output rated voltage	5-80V DC	24-280V AC
	Output rated current	4A
	Output maximum load current	10A
	Output Design Current of Internal Parts	30A	18A
	Output Driving Mode	Electromagnetic	zero-cross diaphragm
	Output on-state pressure drop	≤1.2 DC	≤1.2 DC
	Output fault leakage	≤1mA
	Output isolation voltage	≥2500V AC
	Output Absorption Voltage	Voltage Sensitive	RC Absorption
	Output on-off time	0N>2.6V OFF<2V	0N>2.6V OFF<2V
Action status indication		LED red

Note: The size of the output voltage and current can be selected. Due to the different user environment, the required performance is different. In order to better improve the overall performance of the product, Sanyou may adjust the relay parameters accor



INSTALLATION DIAGRAM:



WIRING DIAGRAM:



PLUG TYPE:

MECHANICAL ABILITY and USE of the ENVIRONMENT:

Input/output outlet M2.5 tightening force distance(N.m)	0.4 appropriate
Stripping length	6-7mm
Ambient temperature	-30~+60℃
Relative humidity	+20℃ 98%
Vibration freq. atthe fixed position	3G, 1～50Hz amplitude 0.5mm
concussion	(60～100) time/minute、Acceleration≤4g
Altitude	2000m
Installation direction	Random
International Protection	IP20





ORDER INSTRUCTION:

SAYOON Product Type	SA
Small package QTY.	6PCS
Package QTY.	180PCS
Mounting bracket type	35mm Guide rail, screw





PRODUCT PICTURE:

















DOWNLOAD DATA:

No.	Download
1	SAdatasheet
2	DC Contactor Technical Applications Form for PDF/ DC Contactor Technical Applications Form for XLS
3	Mini PDF Reader1 for WinXP/ Mini PDF Reader1 for Win7 / Adobe Reader



Tips: if you want to understand the technical details of parameters more SAYOON SA Rail Types Sold State Relay, other SAYOON or the product of information, please visit SAYOON electric official website www.sayoon.com/en, or send mail to sayoon@sayoon.com , ZHEJIANG SAYOON ELECTRIC CO., LTD.  will welcome your arrival.
